Bow | Hybrid Absorbers-Diffusers

Features

Type:
Hybrid Absorber

Recommended for:
Studios | Recording rooms

Absorption Range:
160 Hz to 4000 Hz

Acoustic Class:
D | (αw) = 0,5

Purpose

Available in 3 sizes, all crafted from premium fabrics and quality wood, filled with high-performance acoustic foam.



Combining the 3 different sizes of Bow creates distinct, unique designs and diffusion patterns.



The Bow can be installed on walls or ceilings, hung on screws by means of a discreet imbedded backboard. It can also be installed directly through the front of the panel, concealed behind removable side-foam.

The Bow range is a new design born of the collaboration between Jan Morel and Artnovion.
The bow is an elegant balance between simplicity and futuristic design. The Bow is available in 3 different sizes.
Each Bow has a solid wooden shell, forming a carefully calibrated semi-circular diffuser, with dual lateral closed cavities packed with high-performance acoustic foam. The Bow has a further central Helmholtz cavity extending the mid-range frequency absorption, for an overall balanced mid-high frequency hybrid absorber with an outstanding geometric diffusion.
Performance

S / M / L / Scattering coefficient

Jan Morel Signature line

This product is available in the following Fire Rate:
FG | Furniture Grade
_______

PRODUCT COMPOSITION:

Bow Absorber | Natural wood veneer (FG)

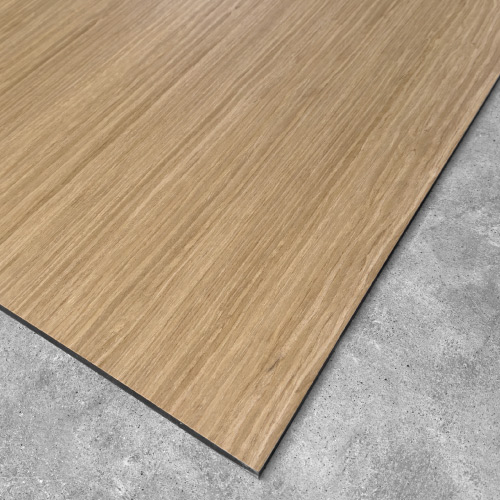

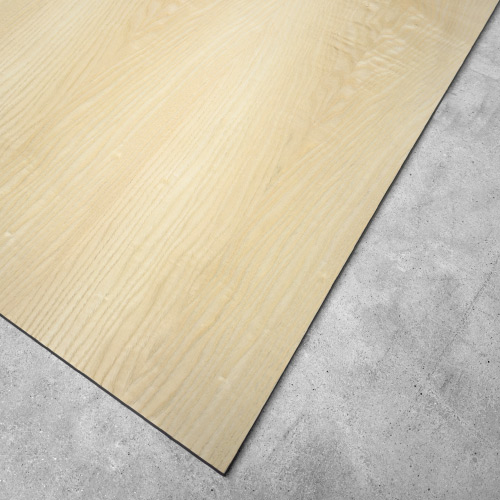

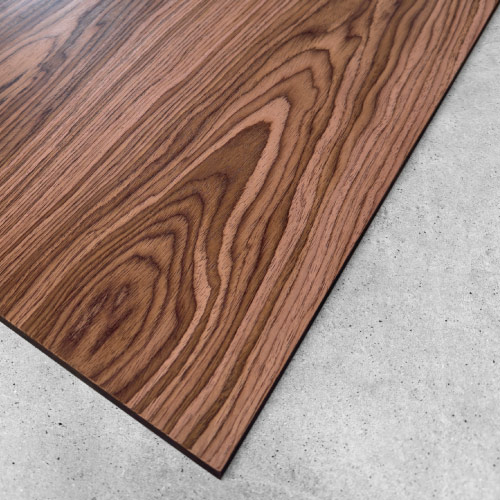

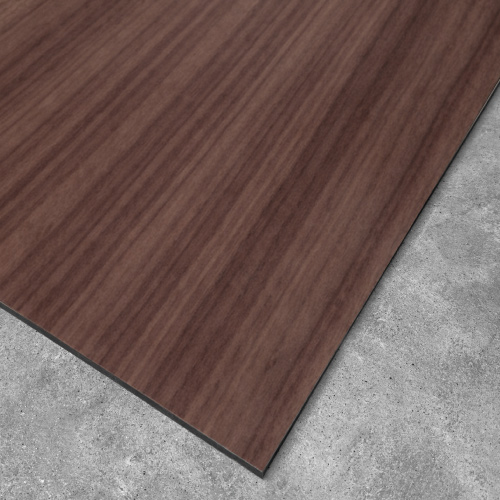

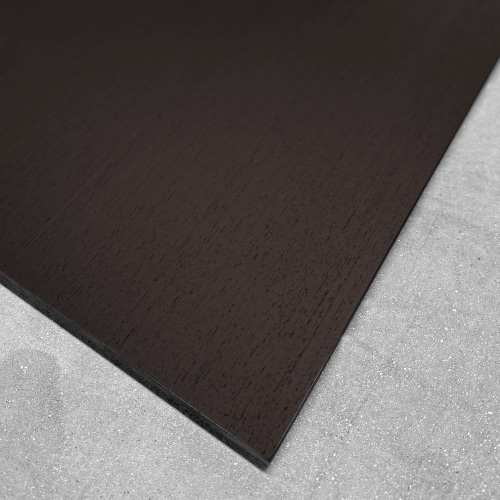

- Natural wood veneer
- Acoustic fabric
- Marine-grade plywood structural frame
- Calibrated cell acoustic foam

Bow Absorber | Lacquered HMDF (FG)
- Lacquered HMDF
- Acoustic fabric
- Marine-grade Plywood Structural Frame
- Calibrated Cell Acoustic Foam

_______

Range Dimensions:

Bow - S | 595x148x75mm
Bow - M | 892x148x107mm
Bow - L | 1190x148x138mm

Bow Absorber | Range

Overview

Features
Type:
Hybrid Absorber

Recommended for:
Studios | Recording rooms

Absorption Range:
160 Hz to 4000 Hz

Acoustic Class:
D | (αw) = 0,55
Dimensions:
595x148x75mm


Available Finishes:

Fabric
Front

Configure your product and contact us for more information

Features
Type:
Hybrid Absorber

Recommended for:
Studios | Recording rooms

Absorption Range:
160 Hz to 4000 Hz

Acoustic Class:
D | (αw) = 0,5
Dimensions:
892x148x107mm


Available Finishes:

Front
Fabric

Configure your product and contact us for more information

Features
Type:
Hybrid Absorber

Recommended for:
Studios | Recording rooms

Absorption Range:
160 Hz to 4000 Hz

Acoustic Class:
D | (αw) = 0,5
Dimensions:
1190x148x138mm


Available Finishes:

Front
Fabric

Configure your product and contact us for more information
