Antares W - Bass Trap - Corner

Performance

58Hz to 66 Hz / 67Hz to 69 Hz / 70Hz to 72 Hz / 74Hz to 77 Hz / 78Hz to 82 Hz

Features

Type:
TPDA - Artnovion Technology
Tuneable Pistonic Diaphragmatic Absorber

Tuneable Absorption Range:
58Hz to 82Hz.
Hz-by-Hz fine-tuning

Purpose
 - Room mode control
 - Bass ratio control
 - Low frequency RT reduction
 - Improving low frequency response
 - Reducing low frequency time decay
The Corner Bass Trap is the latest in low frequency absorption. This elegant panel integrates a tuneable membrane over a sealed volume, containing a high performance acoustic core. A secondary posterior compartment positions a high density velocity core in the high pressure zone of the room. The panel is completely tuneable, by means of an adjustable weighted membrane, allowing to pin-point the performance of the panel to a target frequency.

The panels' tuneable membrane works in a similar way to a speaker cone, allowing for a much superior - and controlled - performance. A central mass is supported by an elastic membrane - This mass can then be altered to change the resonant frequency of the membrane, stepping the peak performance of the Trap from 58 to 82 Hz.
T.P.D.A. - Artnovion technology

Outstanding tuneable performance

The design of these acoustic cores creates a trap with unprecedented performance and unique calibration – Absorbing more - and from a lower frequency - than anything else on the market.

The front of the panels clips in to the bass trap body, leaving easy access to the membrane. The panel is installed on wall corners, with a simple cleat system.

Making the most of our new membrane technology employed in the Sub Trap Range, we are launching an improved version of our Bass Trap HP.
The new membrane brings new fine-tuning possibilities and even more performance than before. It has been redesigned, forgoing the rounded sides to include a new dedicated sealed-cavity Helmholtz resonator at the back – and also elegantly hiding its cleat fixing system.


This product is available in the following Fire Rate:
FG | Furniture Grade

_______

PRODUCT COMPOSITION:

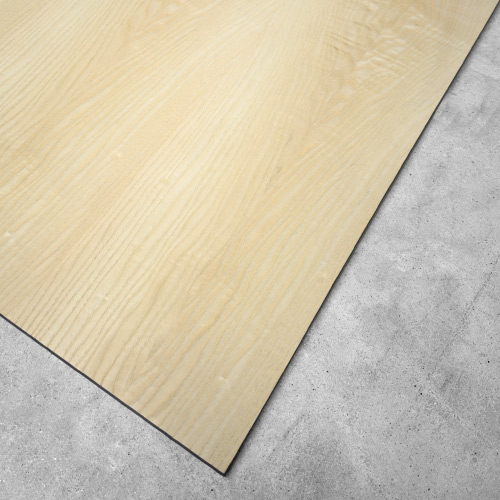

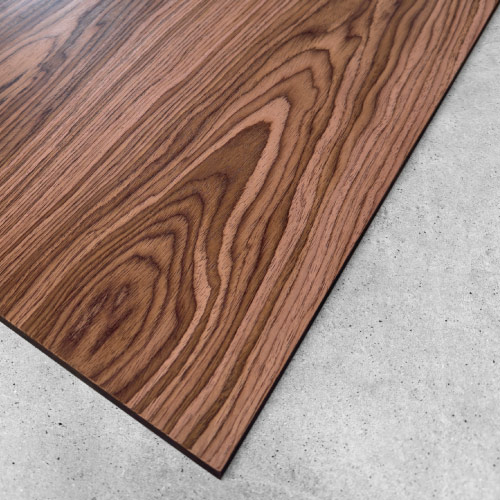

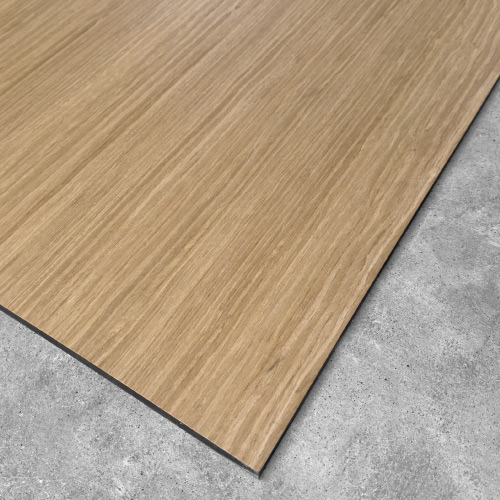

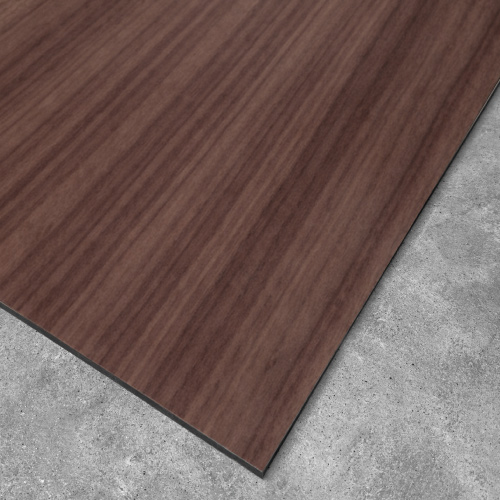

Antares W - Bass Trap - Corner | Natural Wood
- Natural wood
- Acoustic fabric
- Marine-grade plywood structural frame
- Calibrated cell acoustic foam

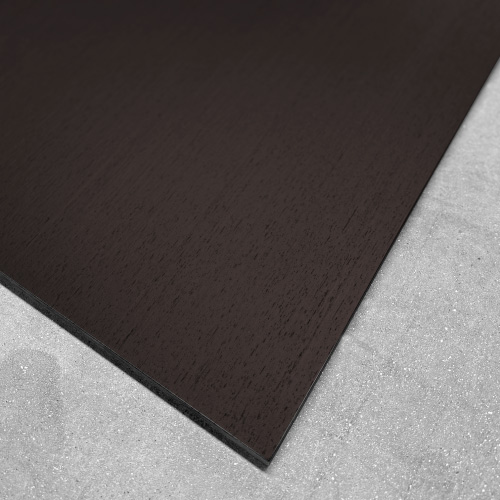

Antares W - Bass Trap - Corner | Lacquered Wood
- Lacquered wood
- Acoustic fabric
- Marine-grade plywood structural frame
- Calibrated cell acoustic foam

_______


Dimensions:
Antares W - Bass Trap - Corner | 595x595x156mm



Artnovion useful tools:

Impulso Acoustics App
High Accuracy Acoustic App Engineered by Artnovion

Project Support link
This form is a tool designed to assist professionals plan and configure acoustic treatment projects.

Feel free to compare our products - Click here
Select two models and we’ll provide you the information you need to make the best decisions.

Product Support Link | Team contact.

Antares W - Bass Trap - Corner

Overview

Features
Type:
TPDA - Artnovion Technology
Tuneable Pistonic Diaphragmatic Absorber

Tuneable Absorption Range:
58Hz to 82Hz.
Hz-by-Hz fine-tuning
Purpose
 - Room mode control
 - Bass ratio control
 - Low frequency RT reduction
 - Improving low frequency response
 - Reducing low frequency time decay
Dimensions:
595x595x156mm


Available Finishes:

Front

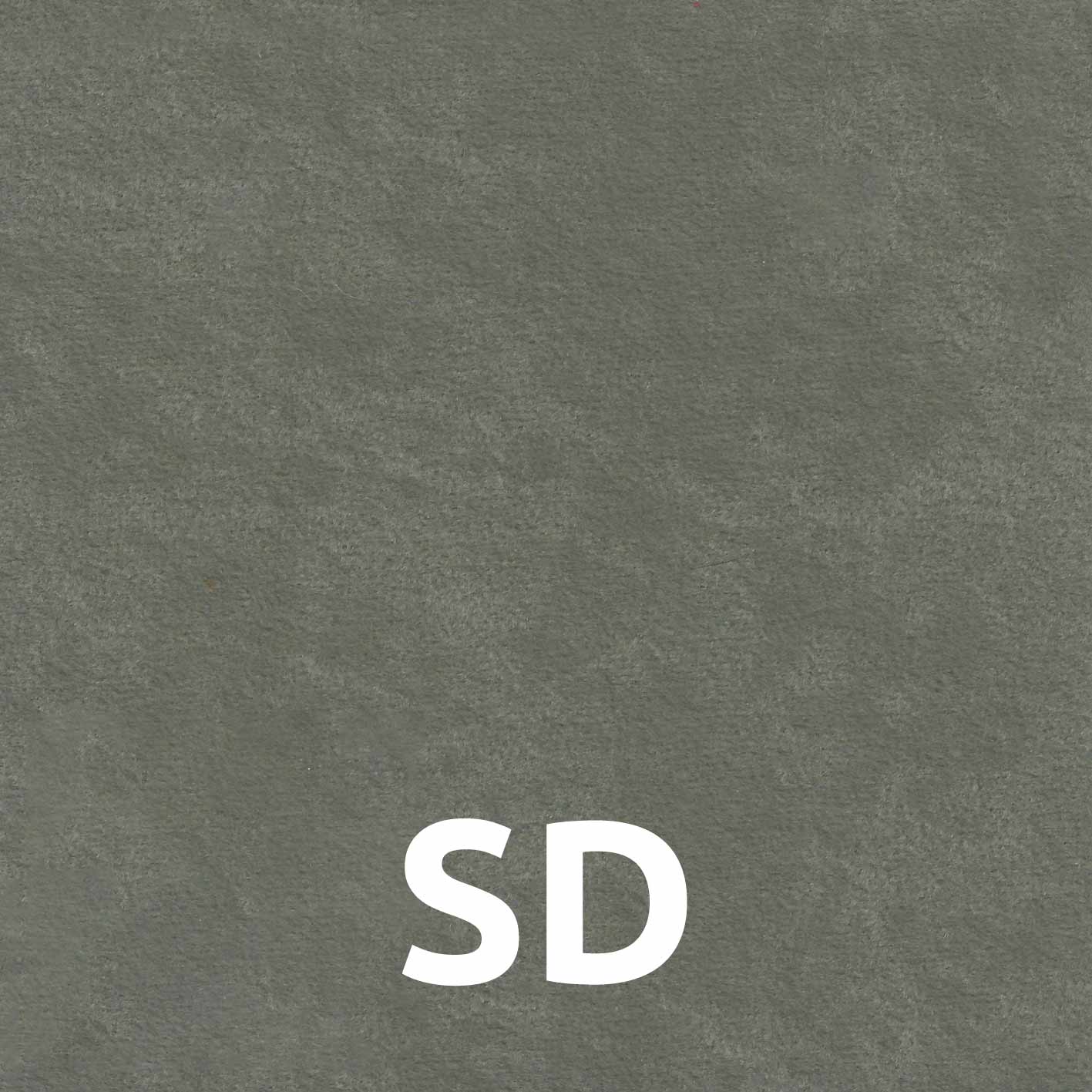

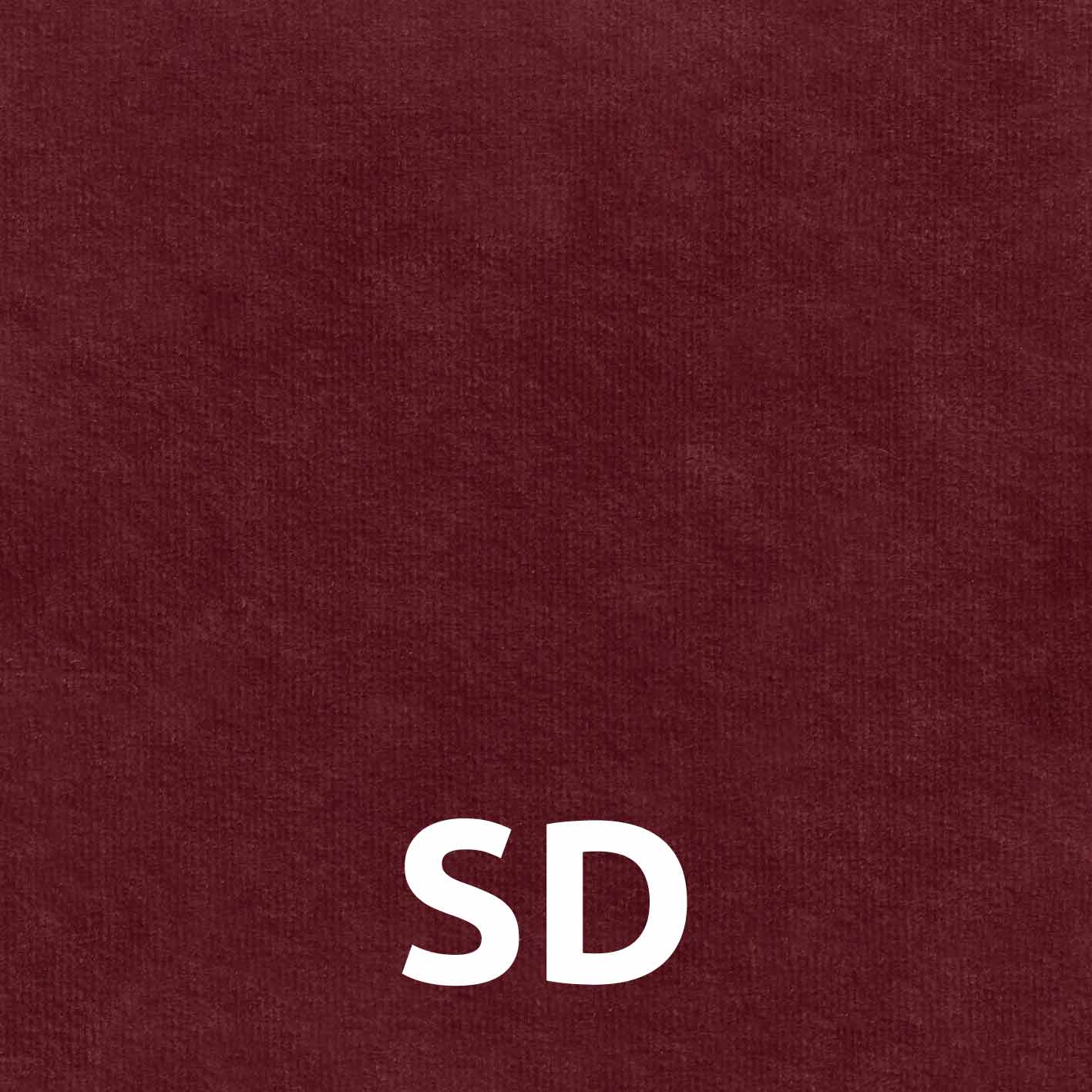

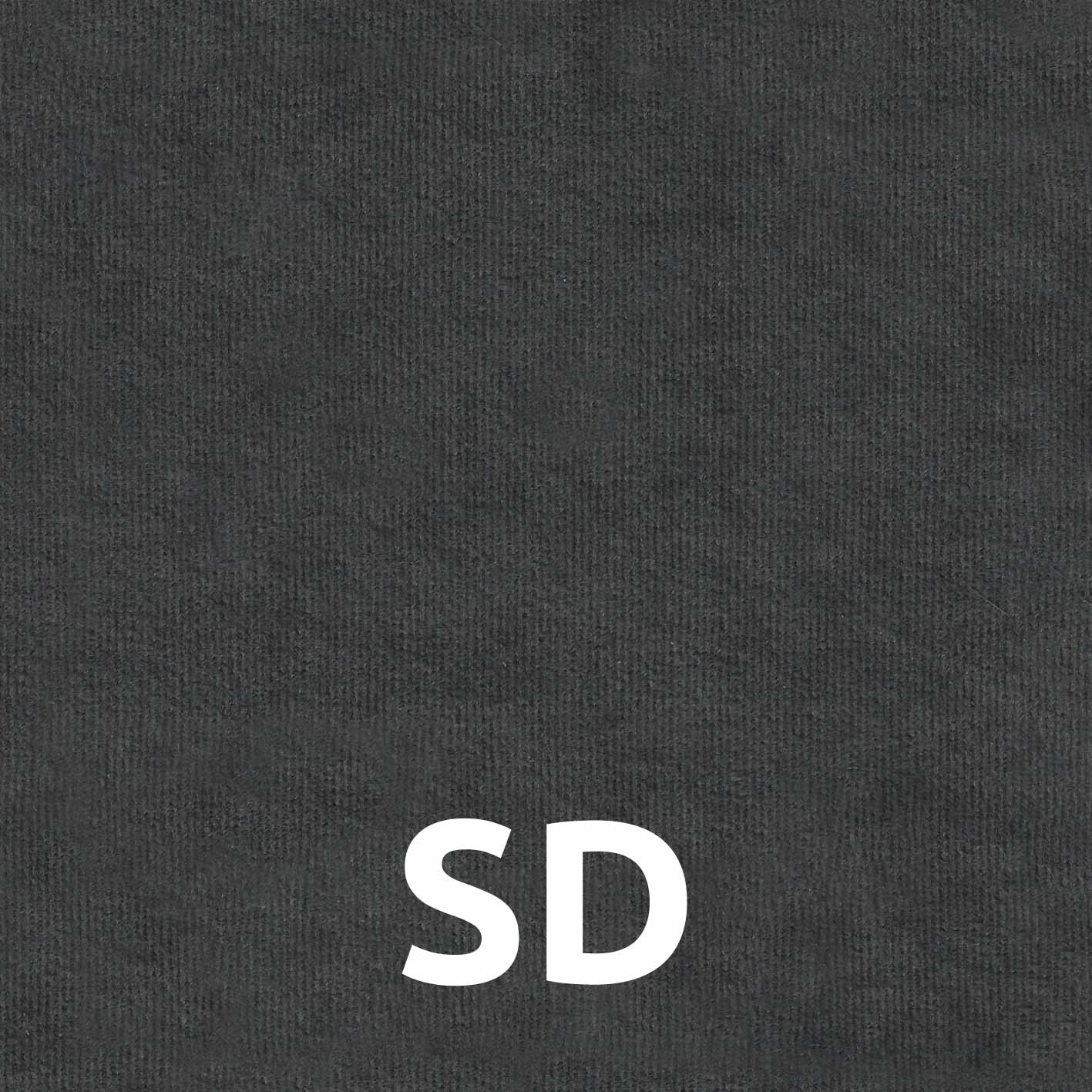

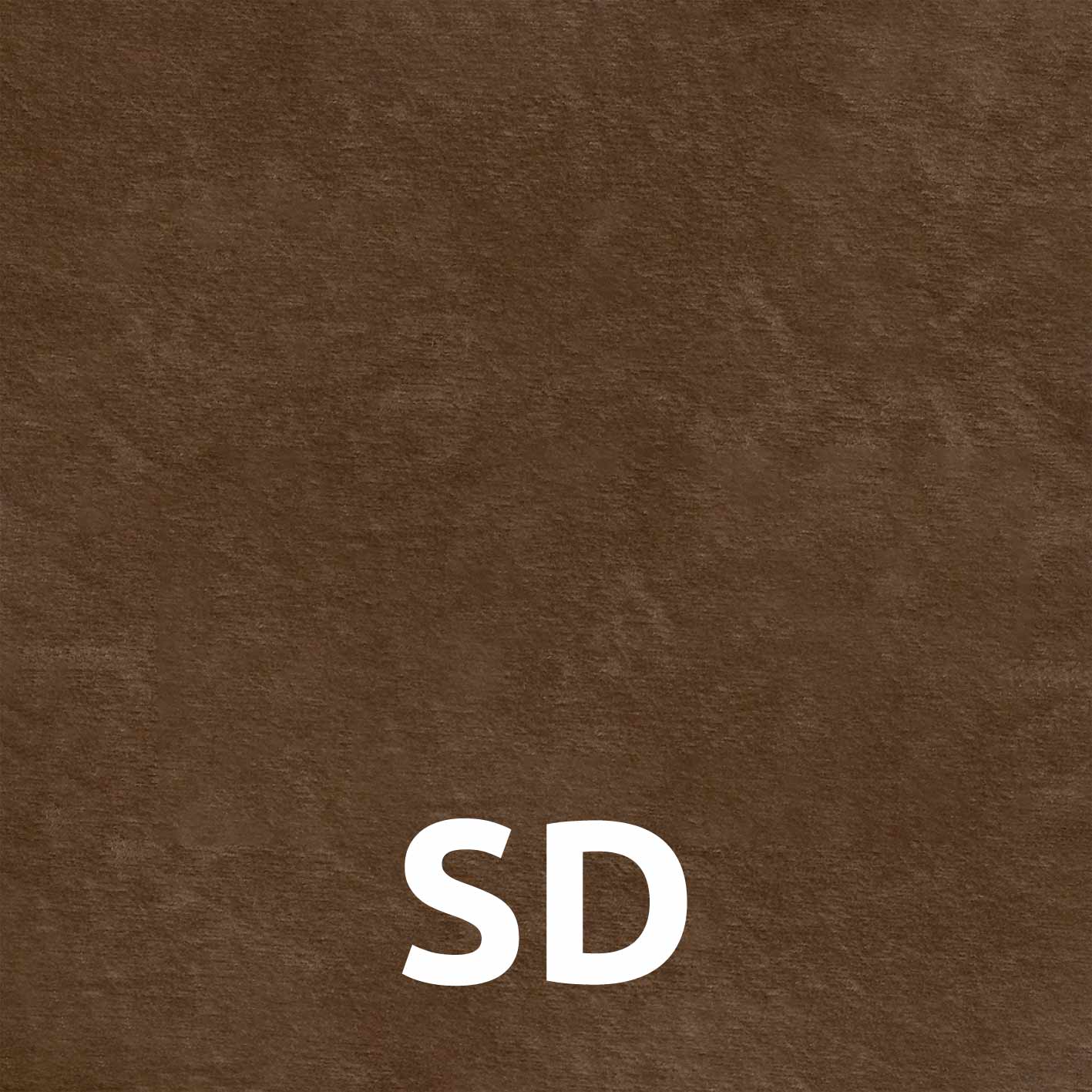

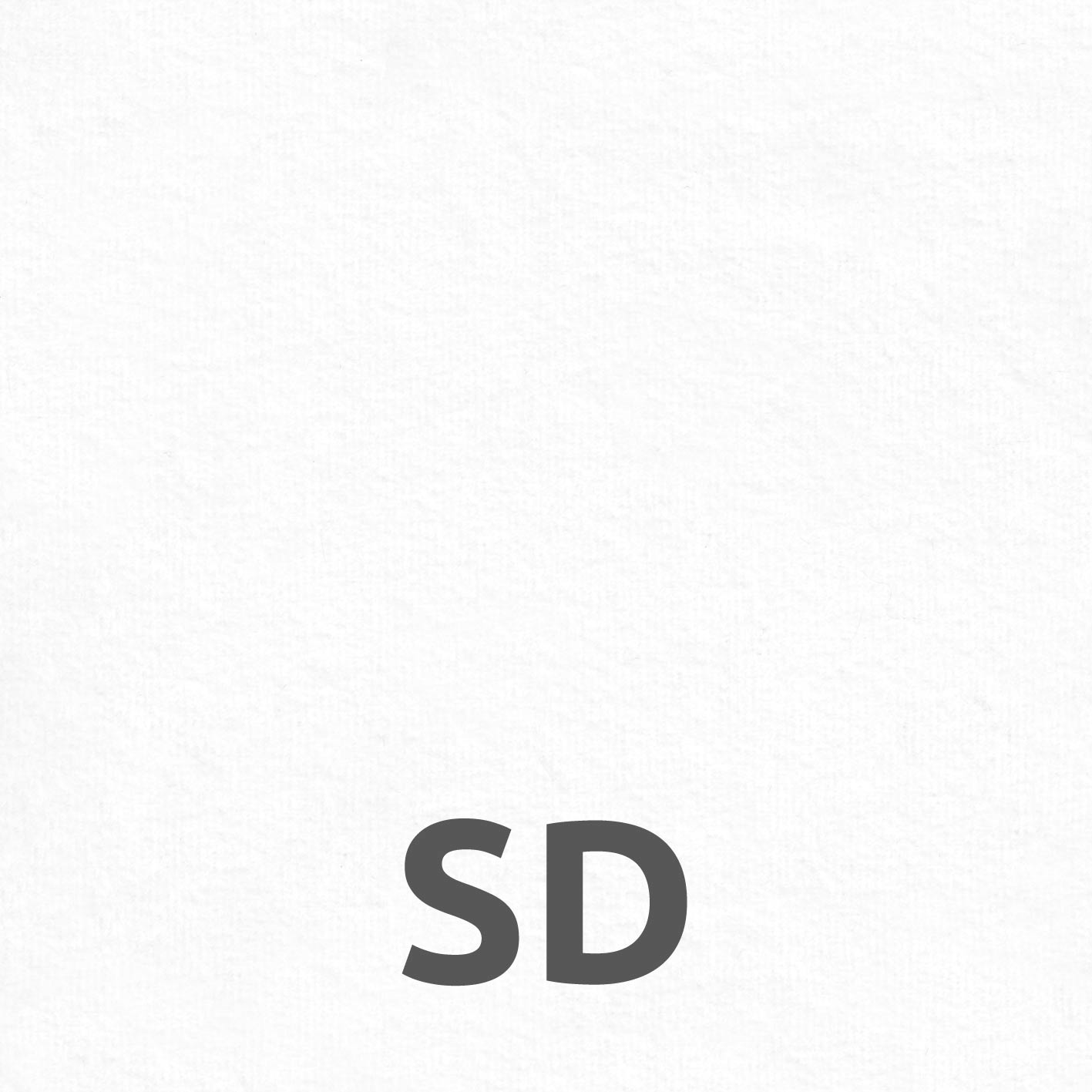

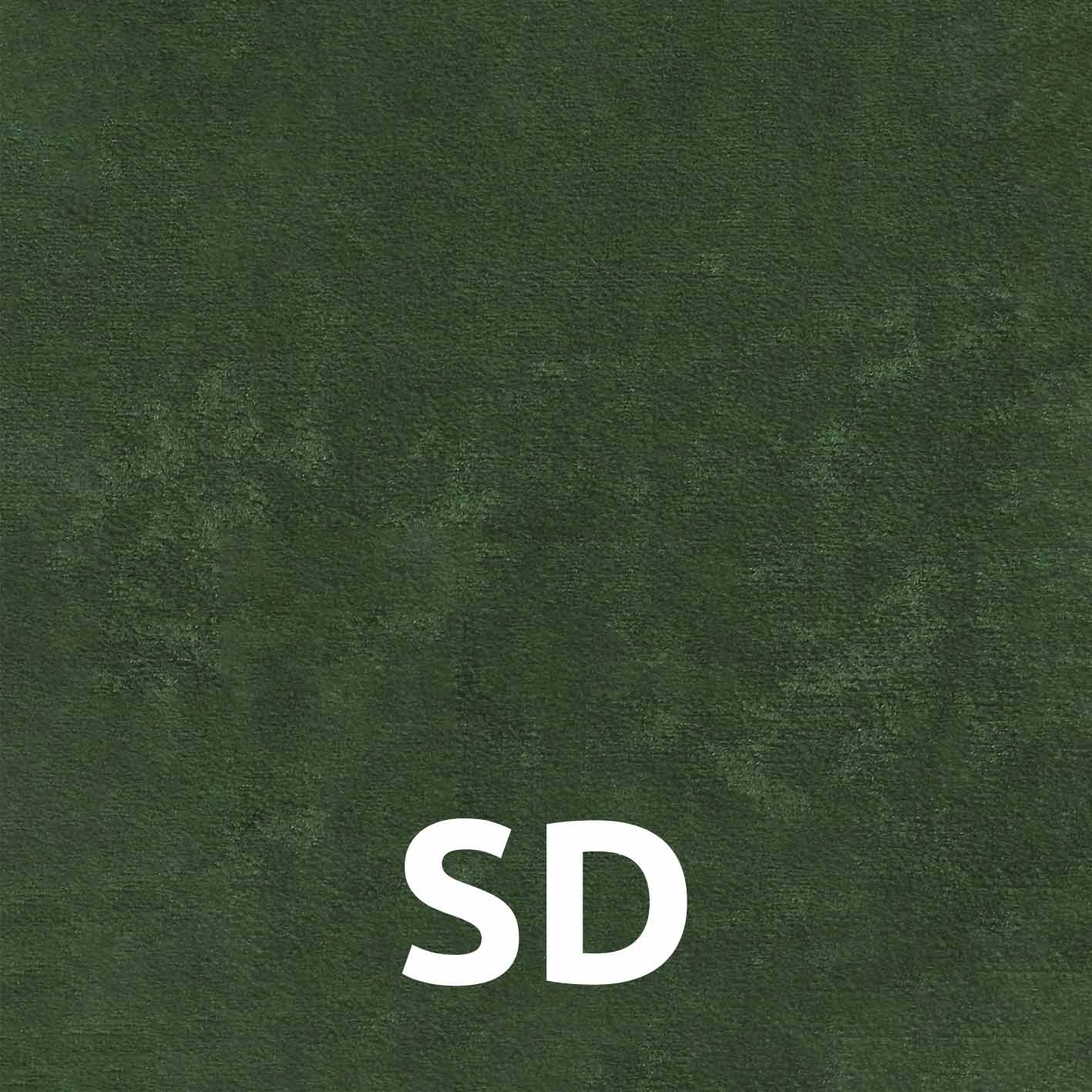

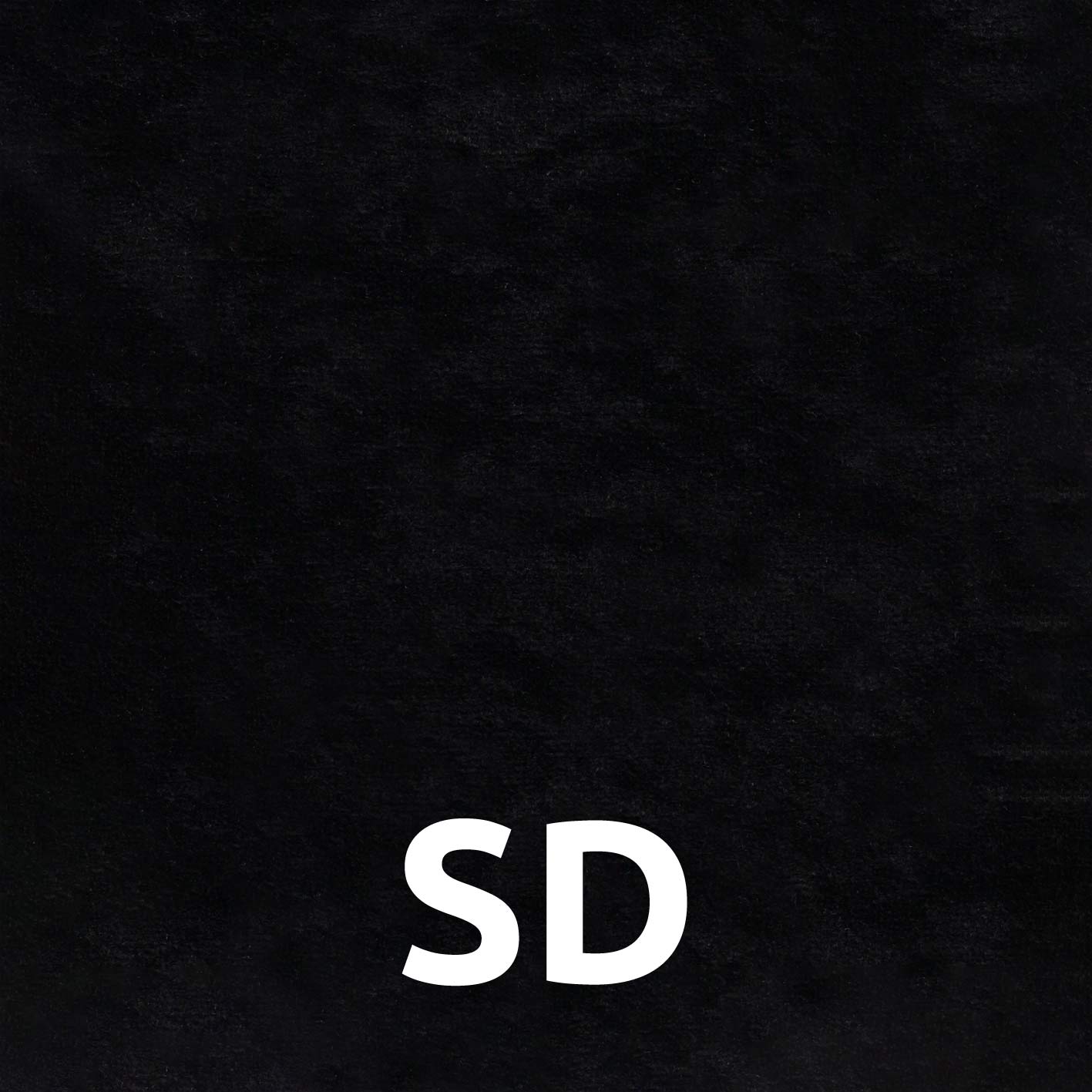

Fabric

Configure your product and contact us for more information
