FixArt Tube

Versatile panel mounting

Artnovion FixArt range brings versatile solutions for panel mounting. With the customer in mind, we developed a reliable, simple, universal system to install panels.

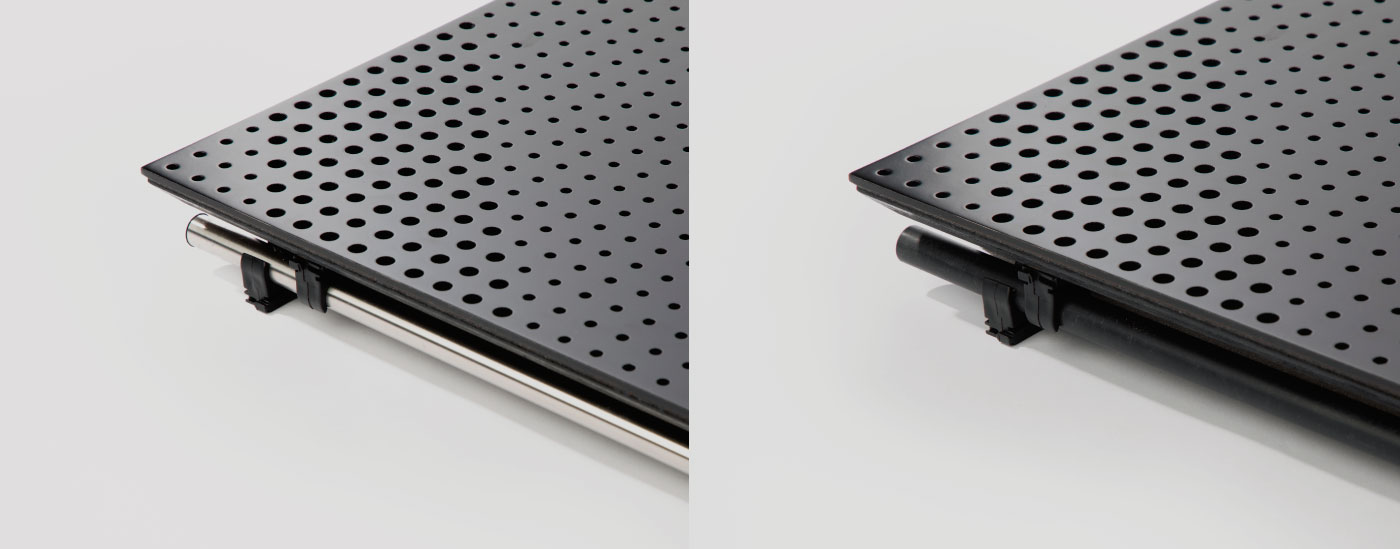

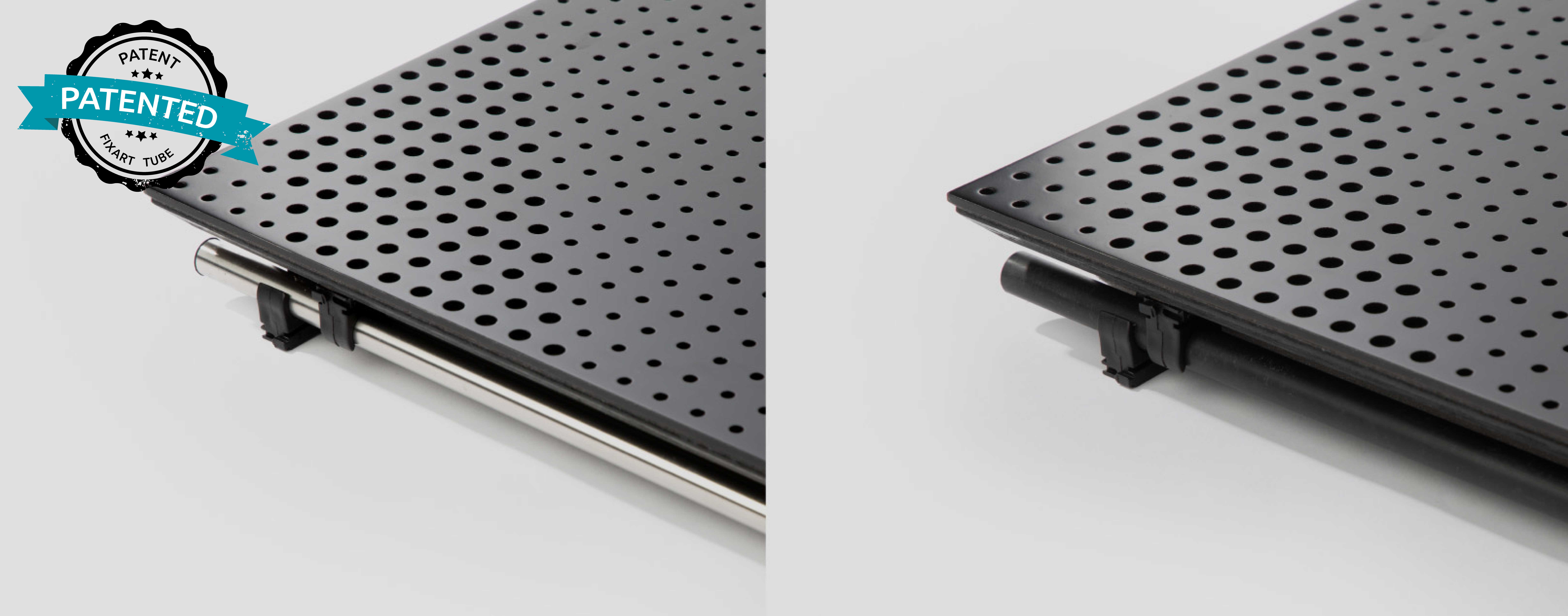

FixArt Tube is a innovative system for acoustic panels. Easy to install, easy to align, Simply follow our template and attach the clip fixture to your surface, and then to the corners of your panel, clip them both into the tube, and you're done! With easy adjustment once mounted, and an easy clip-in, clip-out. Changing your panel design around has never been easier. Also, FixArt Tube creates an air cavity behind your panels, accommodating wall mounting utilizes such as pipes and wires and increasing the panels performance. Provides a solid, level installation independent of the quality of your surface.

Allows for installation on walls, ceilings, slopes or corners - any surface can provide acoustic treatment. Compatible with all foam backed panels.



DISCLAIMER:

When using FixArt tube on the ceiling, it is obligatory to use the FixArt lock security device. This systems guarantees a safe and precise installation. Artnovion is not liable for any damage caused by improper use of FixArt Tube.



Artnovion Patent P. (Acoustic panel with integrated frame system) & Frame design

Artnovion Patent P.(Acoustic panel with Tube Fixing System)









Compatible with M6 screw thread receivers


FixArt Tube Single Metal:

  - 16 tubes per box + 64 plastic clips  ; (tube length Unit 530mm)

  - Installs standard panels (595x595)

  Box size: 640x128x100mm



FixArt Tube Double Metal:

  - 8 tubes per box + 56 plastic clips ;  (tube length Unit 1125mm)

  - Installs 4 Doble H panels, or otherwise 8 standard panels (595x595), coupled side-by-side

  Box size: 1200x128x100mm



FixArt Tube Double Plastic:

  - 8 tubes per box + 64 plastic clips ;  (tube length 1125mm)

  - Installs 4 Doble H panels, or otherwise 8 standard panels (595x595), coupled side-by-side

  Box size: 1200x128x100mm





Artnovion Tools | Quantity Calculator

 FixArt tube Quantity Calculator - Available in the "Downloads" section

(open with any Adobe Reader)





For further details please download our technical file.
