Lyra - Ceiling Tile

Improving aesthetics and acoustics of ceilings around the world
Features

Type:
Absorber

Absorption Range:
350 Hz to 3150 Hz

Acoustic Class:
C | (aw) = 0,7

Purpose

- RT Reduction

- Improving speech intelligibility

- High frequency absorption



The refurbished Artnovion ceiling tile range is the perfect acoustic solution to apply on any T-frame grid system. This product line features adapted versions of the panel designs you love, all fully compatible with public building regulations and available in 4 different sizes – two for metric sized (M) and two for imperial sized (I) grid structures. Our ceiling tiles provide a simple, fast installation procedure in multiple environments such as shopping centers, offices, clinics and waiting rooms.
Performance

Lyra 12 | 100mm air gap / Lyra 16 | 100mm air gap / Lyra 20 | 100mm air gap

Improving aesthetics and acoustics of ceilings around the world

Recommended for

- Office

- Hospitality

- Public Spaces

- Conference Room

- Auditorium



Every panel is equipped with a high-performance acoustic core made entirely from recycled PET plastic.
_______

This product is available in the following Fire Rates:
FG | Furniture Grade
FR | Fire Rated
_______

PRODUCT COMPOSITION:

Lyra | Natural Wood Veneer | Primer Finished HMDF (FG)
- Natural Wood Veneer | Primer Finished HMDF *
- Sound PET acoustic core - Euro Class B

Lyra | Natural Wood Veener | Lacquered Fire retardant HMDF (FR)
- Natural Wood Veneer | Lacquered Fire Retardant HMDF
- Sound PET acoustic core - Euro Class B

* finished with a white or black primer paint that gives it a raw, matte effect.


_______

Range | Dimensions:
Metric Ceiling Grid - 600x600mm/ 600x1200mm

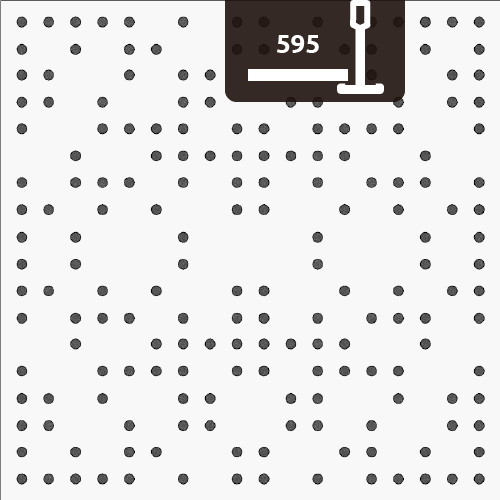

(FG) Lyra 12 SQR - Ceiling Tile | 595x595x38mm
(FR) Lyra 12 SQR - Ceiling Tile | 595x595x39mm

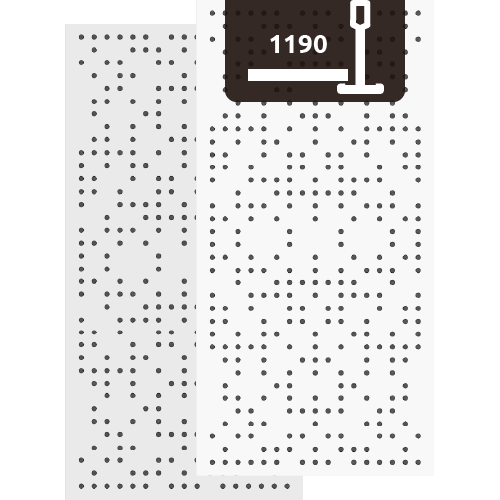

(FG) Lyra 12 RCT - Ceiling Tile | 595x1190x38mm
(FR) Lyra 12 RCT - Ceiling Tile | 595x1190x39mm

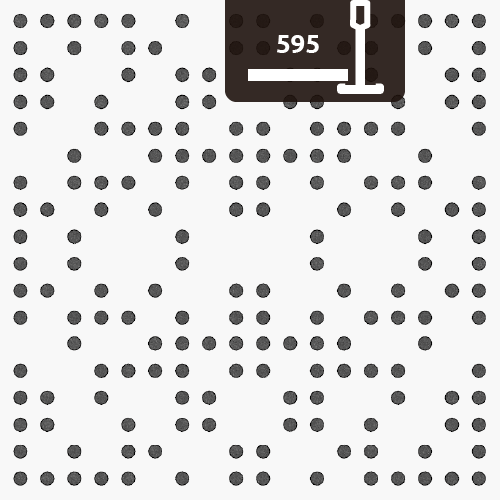

(FG) Lyra 16SQR - Ceiling Tile | 595x595x38mm
(FR) Lyra 16 SQR - Ceiling Tile | 595x595x39mm
(FG) Lyra 16 RCT - Ceiling Tile | 595x1190x38mm
(FR) Lyra 16 RCT - Ceiling Tile | 595x1190x39mm

(FG) Lyra 20SQR - Ceiling Tile | 595x595x38mm
(FR) Lyra 20 SQR - Ceiling Tile | 595x595x39mm

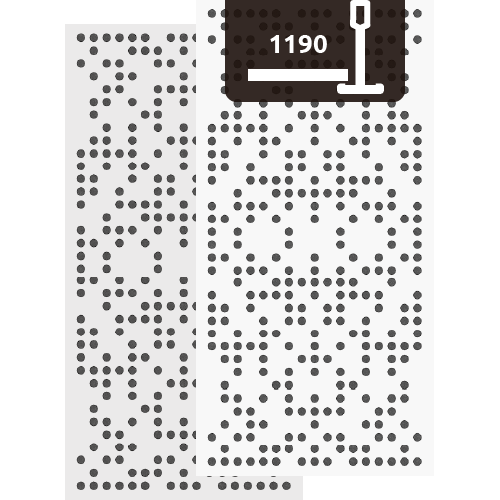

(FG) Lyra 20 RCT - Ceiling Tile | 595x1190x38mm
(FR) Lyra 20 RCT - Ceiling Tile | 595x1190x39mm

Imperial Ceiling Grid - 2x2’’/ 2x4’’

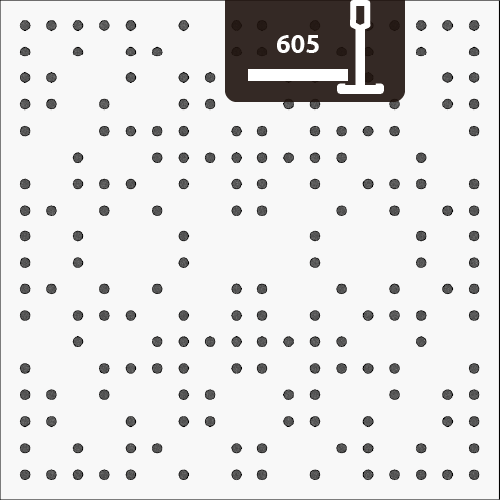

(FG) Lyra 12 SQR I - Ceiling Tile | 605x605x38mm
(FR) Lyra 12 SQR I - Ceiling Tile | 605x605x39mm

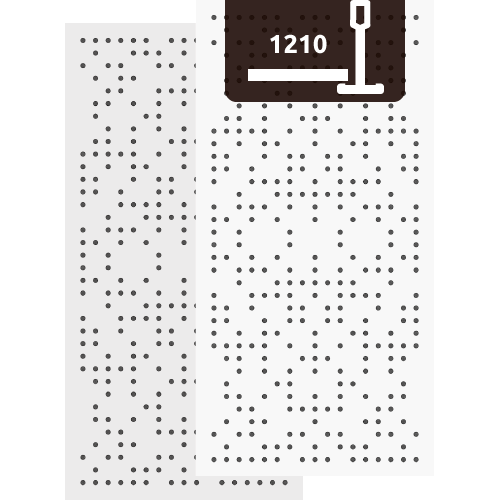

(FG) Lyra 12 RCT I - Ceiling Tile | 605x1210x38mm
(FR) Lyra 12 RCT I - Ceiling Tile | 605x1210x39mm

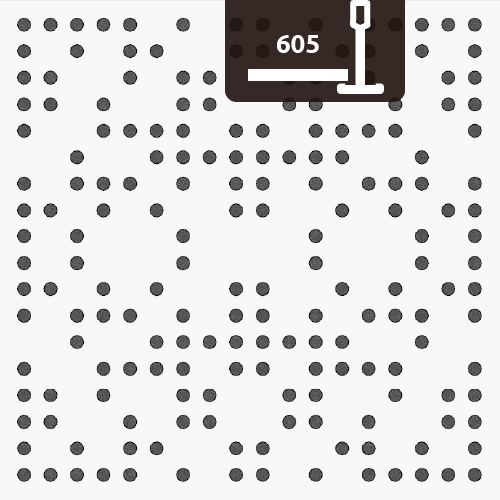

(FG) Lyra 16 SQR I - Ceiling Tile | 605x605x38mm
(FR) Lyra 16 SQR I - Ceiling Tile | 605x605x39mm

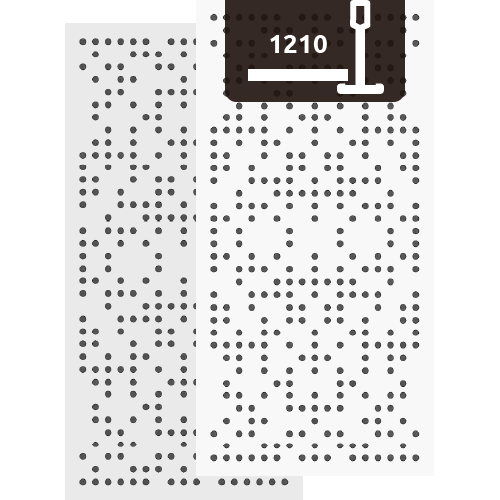

(FG) Lyra 16 RCT I - Ceiling Tile | 605x1210x38mm
(FR) Lyra 16 RCT I - Ceiling Tile | 605x1210x39mm

(FG) Lyra 20 SQR I - Ceiling Tile | 605x605x38mm
(FR) Lyra 20 SQR I - Ceiling Tile | 605x605x39mm

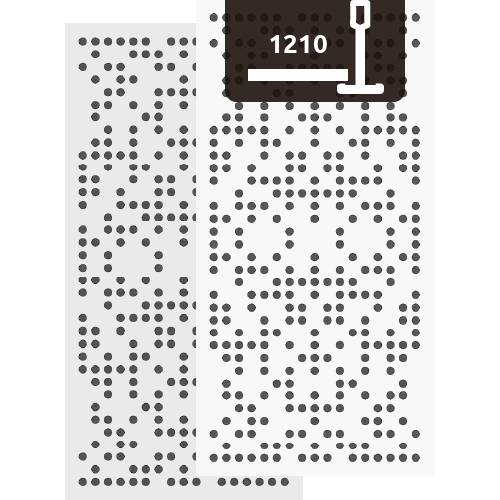

(FG) Lyra 20 RCT I - Ceiling Tile | 605x1210x38mm
(FR) Lyra 20 RCT I - Ceiling Tile | 605x1210x39mm

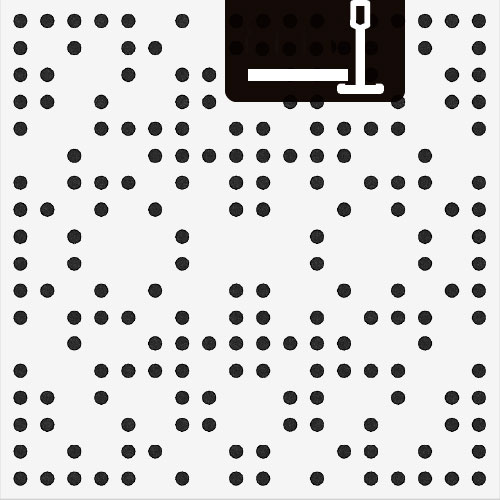

Lyra - Ceiling Tile | Range

T frame compatible

Overview

Features
Type:
Absorber

Absorption Range:
350 Hz to 3150 Hz

Acoustic Class:
C | (aw) = 0,7
Purpose

- RT Reduction

- Improving speech intelligibility

- High frequency absorption



Recommended for

- Office

- Hospitality

- Public Spaces

- Conference Room

- Auditorium



Dimensions:

FG - PP | 595x1190x38mm

FG - LW | 595x1190x38mm

FG - NW | 595x1190x38mm

FR - LW | 595x1190x39mm

FR - NW | 595x1190x39mm



Available Finishes:

(FG - PP) Painted Primer Finishes (FG - LW) Lacquered Wood Finishes (FG - NW) Natural Wood Finishes (FR - LW) Lacquered Wood Finishes (FR - NW) Natural Wood Finishes
