Bass Trap | Corner

Absorption coefficient | 1/3 Oct. from 32Hz to 160Hz | 1 Oct. from 250Hz to 8 KHz |
Performance

58 Hz to 66 Hz / 67Hz to 69 Hz / 70Hz to 72 Hz / 74Hz to 77 Hz / 78Hz to 82 Hz

Features

Type:
Tuneable weighted diafragmatic membrane

Tuneable absorption range:
57Hz to 82Hz.
Hz-by-Hz fine tuning

Purpose

- Room mode control
- Bass ratio control
- Low frequency RT reduction
- Improving low frequency response
- Reducing low frequency time decay



Tuneable Pistonic Diaphragmatic Absorber
New fine-tuning possibilities.

The Corner bass trap is the latest in low frequency absorption. This elegant panel integrates a tuneable membrane over a sealed volume, containing a high performance acoustic core. A secondary posterior compartment positions a high density velocity core in the high pressure zone of the room. The panel is completely tuneable, by means of an adjustable weighted membrane, allowing to pin-point the performance of the panel to a target frequency.

The panels' tuneable membrane works in a similar way to a speaker cone, allowing for a much superior - and controlled - performance. A central mass is supported by an elastic membrane - This mass can then be altered to change the resonant frequency of the membrane, stepping the peak performance of the Trap from 57 to 82 Hz.
Artnovion product 319 bass trap corner range 4931c1341b
Artnovion product 319 bass trap corner range 49f38b86748ca31d34f68b1383767e

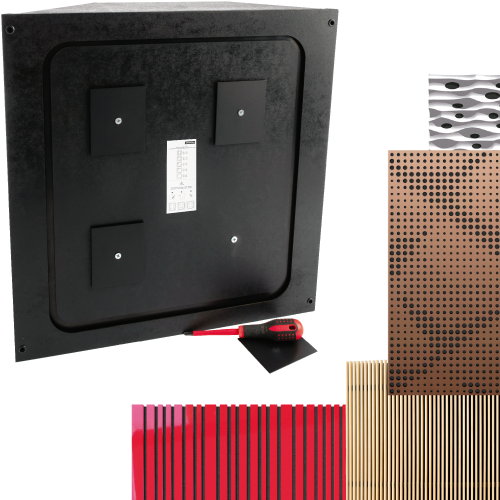

The front of the panels clips in to the bass trap body, leaving easy access to the membrane.

The design of these acoustic cores creates a trap with unprecedented performance and unique calibration – Absorbing more - and from a lower frequency - than anything else on the market.

The Corner Bass Trap will be available in all standard panel fronts – following the lines of the previous HP range. The front of the panels clips in to the bass trap body, leaving easy access to the membrane. The panel is installed on wall corners, with a simple cleat system.

Making the most of our new membrane technology employed in the Sub Trap range, we are launching an improved version of our bass trap HP.
The new membrane brings new fine-tuning possibilities and even more performance than before. It has been redesigned, forgoing the rounded sides to include a new dedicated sealed-cavity Helmholtz resonator at the back – and also elegantly hiding its cleat fixing system.

Available fire rates:
FG | Furniture Grade

Material:
- Natural Wood veener | Lacquered HMDF | Solid Wood
- Marine grade plywood structural frame
- Calibrated cell acoustic foam

Dimensions:
Komodo Bass Trap Corner
- 595x595x156mm

Verona Bass Trap Corner
- 595x595x156mm

Sahara Bass Trap Corner
- 595x595x163mm

Kalahari Bass Trap Corner
- 595x595x163mm

Siena Bass Trap Corner
- 595x595x163mm

- 595x595x163mm

Eiger Bass Trap Corner
- 595x595x213mm
Artnovion product 319 bass trap corner range 49f38b86748ca31d34f68b1383767e

The front of the panels clips in to the bass trap body, leaving easy access to the membrane.

Recommended for

- Vertical Wall Corner
- Small Room Acoustics
- Acoustic pressure zones

- Reducing low frequency time decay





The design of these acoustic cores creates a trap with unprecedented performance and unique calibration – Absorbing more - and from a lower frequency - than anything else on the market.

The Corner Bass Trap will be available in all standard panel fronts – following the lines of the previous HP range. The front of the panels clips in to the bass trap body, leaving easy access to the membrane. The panel is installed on wall corners, with a simple cleat system.

Making the most of our new membrane technology employed in the Sub Trap range, we are launching an improved version of our bass trap HP.
The new membrane brings new fine-tuning possibilities and even more performance than before. It has been redesigned, forgoing the rounded sides to include a new dedicated sealed-cavity Helmholtz resonator at the back – and also elegantly hiding its cleat fixing system.

Available fire rates:
FG | Furniture Grade

Material:
- Natural Wood veener | Lacquered HMDF | Solid Wood
- Marine grade plywood structural frame
- Calibrated cell acoustic foam

Dimensions:

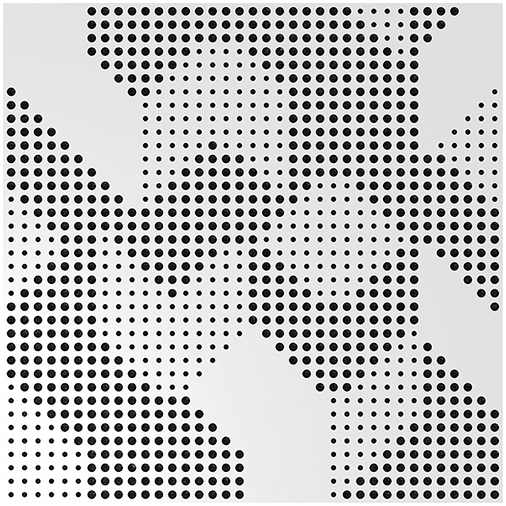

Komodo Bass Trap Corner
- 595x595x156mm

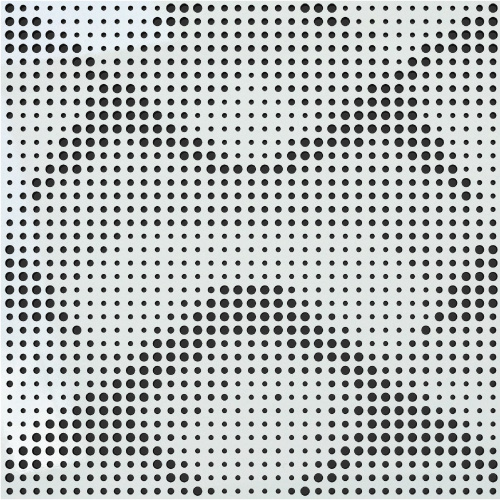

Verona Bass Trap Corner
- 595x595x156mm

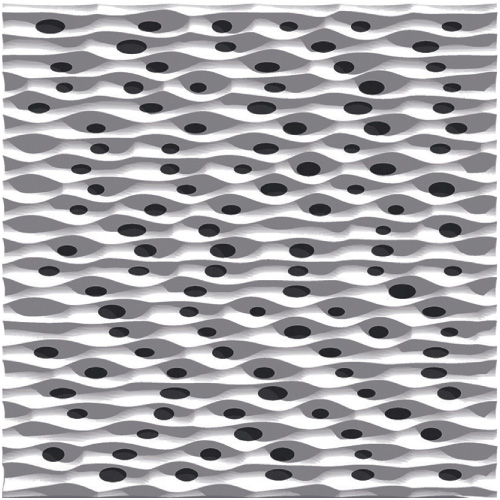

Sahara Bass Trap Corner
- 595x595x163mm

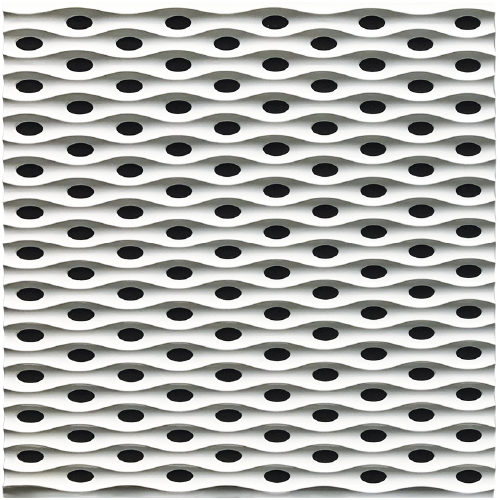

Kalahari Bass Trap Corner
- 595x595x163mm

Siena Bass Trap Corner
- 595x595x163mm

- 595x595x163mm

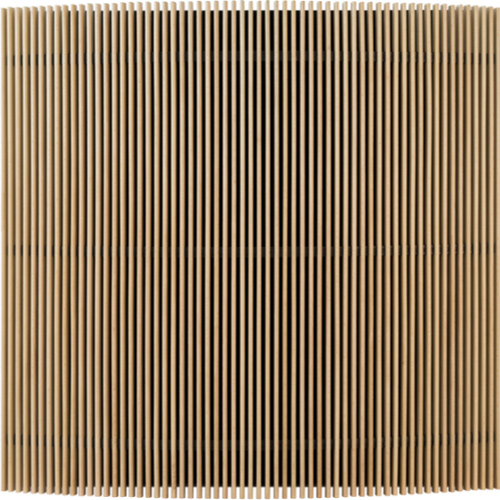

Eiger Bass Trap Corner
- 595x595x213mm
Artnovion product 319 bass trap corner range c4a7f7d31b0ade00999af707de0a85

Bass Trap Corner | Range

Control your room

OVERVIEW

Purpose

- Room mode control
- Bass ratio control
- Low frequency RT reduction
- Improving low frequency response
- Reducing low frequency time decay



Recommended for

- Vertical Wall Corner
- Small Room Acoustics
- Acoustic pressure zones

- Reducing low frequency time decay



Type:
Tuneable weighted diafragmatic membrane

Tuneable absorption range: 57Hz to 82Hz.

.Tuneable weighted diafragmatic membrane
.Hz-by-Hz fine tuning
.New fine-tuning possibilities.



Material:
- Natural wood veener
- Marine grade plywood structural frame
- Calibrated cell acoustic foam



This panels can only be installed on vertical wall corners. Not for ceiling use.









Dimensions:

FG - NW | 595x595x213mm


Interested in this product? Contact us

Purpose

- Room mode control
- Bass ratio control
- Low frequency RT reduction
- Improving low frequency response
- Reducing low frequency time decay



Recommended for

- Vertical Wall Corner
- Small Room Acoustics
- Acoustic pressure zones

- Reducing low frequency time decay





Type:
Tuneable weighted diafragmatic membrane

Tuneable absorption range: 57Hz to 82Hz.

.Tuneable weighted diafragmatic membrane
.Hz-by-Hz fine tuning
.New fine-tuning possibilities.



Material:
- Natural Wood veener | Lacquered HMDF | Solid  Wood
- Marine grade plywood structural frame
- Calibrated cell acoustic foam



This panels can only be installed on vertical wall corners. Not for ceiling use.










Interested in this product? Contact us

Purpose

- Room mode control
- Bass ratio control
- Low frequency RT reduction
- Improving low frequency response
- Reducing low frequency time decay



Recommended for

- Vertical Wall Corner
- Small Room Acoustics
- Acoustic pressure zones

- Reducing low frequency time decay



Type:
Tuneable weighted diafragmatic membrane

Tuneable absorption range: 57Hz to 82Hz.

.Tuneable weighted diafragmatic membrane
.Hz-by-Hz fine tuning
.New fine-tuning possibilities.



Material:
- Natural Wood veener | Lacquered HMDF | Solid  Wood
- Marine grade plywood structural frame
- Calibrated cell acoustic foam



This panels can only be installed on vertical wall corners. Not for ceiling use.





Installation : Integrated fixing system

Dimensions:

FG - LW | 595x595x163mm

Available Finishes:

(FG - LW) Lacquered Wood Finishes

Interested in this product? Contact us

Purpose

- Room mode control
- Bass ratio control
- Low frequency RT reduction
- Improving low frequency response
- Reducing low frequency time decay



Recommended for

- Vertical Wall Corner
- Small Room Acoustics
- Acoustic pressure zones

- Reducing low frequency time decay



Type:
Tuneable weighted diafragmatic membrane

Tuneable absorption range: 57Hz to 82Hz.

.Tuneable weighted diafragmatic membrane
.Hz-by-Hz fine tuning
.New fine-tuning possibilities.



Material:
- Natural Wood veener | Lacquered HMDF | Solid  Wood
- Marine grade plywood structural frame
- Calibrated cell acoustic foam



This panels can only be installed on vertical wall corners. Not for ceiling use.





Installation : Integrated fixing system

Dimensions:

FG - LW | 595x595x163mm

Available Finishes:

(FG - LW) Lacquered Wood Finishes

Interested in this product? Contact us

Purpose

- Room mode control
- Bass ratio control
- Low frequency RT reduction
- Improving low frequency response
- Reducing low frequency time decay



Recommended for

- Vertical Wall Corner
- Small Room Acoustics
- Acoustic pressure zones

- Reducing low frequency time decay



Type:
Tuneable weighted diafragmatic membrane

Tuneable absorption range: 57Hz to 82Hz.

.Tuneable weighted diafragmatic membrane
.Hz-by-Hz fine tuning
.New fine-tuning possibilities.



Material:
- Natural Wood veener | Lacquered HMDF
- Marine grade plywood structural frame
- Calibrated cell acoustic foam



This panels can only be installed on vertical wall corners. Not for ceiling use.







Installation : Integrated fixing system

Dimensions:

FG - LW | 595x595x156mm

FG - NW | 595x595x156mm

Available Finishes:

(FG - LW) Lacquered Wood Finishes
(FG - NW) Natural Wood Finishes

Interested in this product? Contact us

Purpose

- Room mode control
- Bass ratio control
- Low frequency RT reduction
- Improving low frequency response
- Reducing low frequency time decay





Recommended for

- Vertical Wall Corner

- Small Room Acoustics
- Acoustic pressure zones

- Reducing low frequency time decay





Type:
Tuneable weighted diafragmatic membrane

Tuneable absorption range: 57Hz to 82Hz.

.Tuneable weighted diafragmatic membrane
.Hz-by-Hz fine tuning
.New fine-tuning possibilities.



Material:
- Natural Wood veener | Lacquered HMDF | Solid  Wood
- Marine grade plywood structural frame
- Calibrated cell acoustic foam



This panels can only be installed on vertical wall corners. Not for ceiling use.









Installation : Integrated fixing system

Dimensions:

FG - LW | 595x595x156mm

FG - NW | 595x595x156mm

Available Finishes:

(FG - LW) Lacquered Wood Finishes
(FG - NW) Natural Wood Finishes

Interested in this product? Contact us

Purpose

- Room mode control
- Bass ratio control
- Low frequency RT reduction
- Improving low frequency response
- Reducing low frequency time decay



Recommended for

- Vertical Wall Corner
- Small Room Acoustics
- Acoustic pressure zones

- Reducing low frequency time decay







Type:
Tuneable weighted diafragmatic membrane

Tuneable absorption range: 57Hz to 82Hz.

.Tuneable weighted diafragmatic membrane
.Hz-by-Hz fine tuning
.New fine-tuning possibilities.



Material:
- Natural Wood veener | Lacquered HMDF | Solid  Wood
- Marine grade plywood structural frame
- Calibrated cell acoustic foam



This panels can only be installed on vertical wall corners. Not for ceiling use.





Installation : Integrated fixing system

Dimensions:

FG - LW | 595x595x163mm

FG - NW | 595x595x163mm

Available Finishes:

(FG - LW) Lacquered Wood Finishes
(FG - NW) Natural Wood Finishes

Interested in this product? Contact us
